XT770 Shaft + Geo

Beschrijving

The XT770 Shaft+GEO system has all the programs and functions you need to keep your machines up and running. It is configured for installation and overhaul of all types of rotating machinery, like e.g. gas compressors.

Laser transmitters for geometric measurements

The XT770 Shaft+GEO combines shaft alignment with geometric measurement capabilities. It enables precise alignment of rotating machinery and checking of geometric parameters like flatness and straightness. This makes it the ideal tool for machine installation and maintenance.

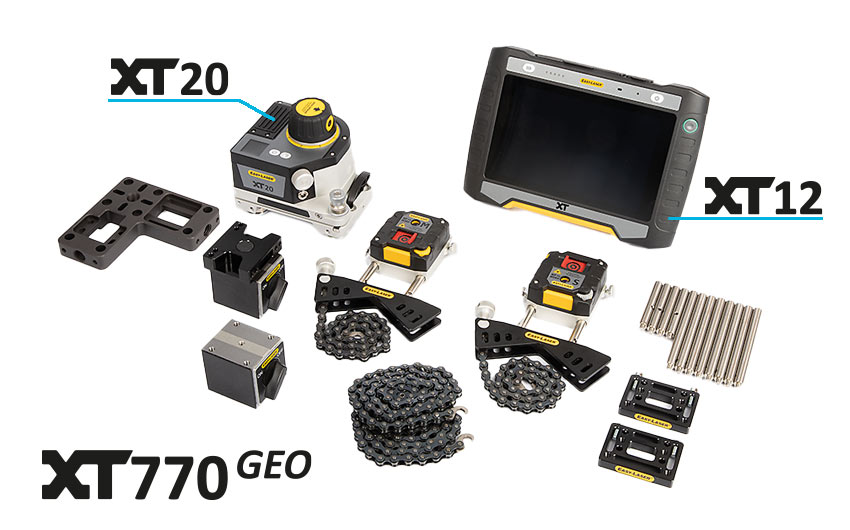

The system includes a separate laser transmitter, and you can select between two different models: the XT20 or XT22:

• XT20 is perfect for checking flatness and straightness during machine installation or surface flatness of machined parts.
• XT22 also lets you point the laser beam perpendicular to the laser plane. It provides more options for geometrical measurements, and even higher accuracy and precision.

By adding accessories, the system can also:

• Align cardan shafts
• Measure bore centerline straightness
• Measure dynamic movement of machines

For a list of all measurement programs and functions, please see the Features tab.

Key strengths of XT770 Shaft+GEO

• 2 axis PSDs allow simultaneous vertical and horizontal adjustments.
• Performs both shaft alignment and geometric measurements.
• Allows for accurate flatness and straightness checks.
• Measures machine trains with an unlimited number of machines.
• Measuring units built to withstand harsh industrial environments (IP66 and 67).
• Automatic documentation of alignment results.
• Cross-platform compatibility: Works with the industrial-grade Easy-Laser display unit or most iOS/Android devices.
